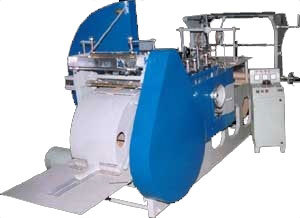

Paper Bag Making Machine

Paper Bag Making Machine
Paper Bag Making Machine
Product Code : 02
Product Description



PAPER BAG MAKING MACHINE IS DESIGNED TO MANUFACTURE FLAT AND SATCHEL PAPER BAGS FROM KRAFT PAPER, GREASEPROOF

Paper Bag Making Machine is Made of rigid and Robust Construction to Avoid Vibration. All Paper are Arranged in Most Accessible Way Thus Making Operation and Adjustment Very Simple and Quick So That Even an Unskilled Labour Can Easily Operate the Machine Successfully. The Change of Size is Very Easy And Can be Done in Few Minutes Time. The Machine is Supplied with One Size Plate and One size Gears to Manufacture One Size of Paper Bag. Different Size Plates & Size Gear For Flat And Stachel Bags Are Available At Extra Cost. Mill Reels Upto 34Dia and 34 Width Can be Accommodated of the Machine.. The Width of the Paper Reel to be Fed on the Machine Can be Calculated as Under..





Feature:


  • Sturdy construction ensure less vibration
  • Arranged papers make the operation and adjustment very easy & quick
  • Changeable size
  • It has one size plate and one size gears for one size of paper bags
  • Different size plates and size gears for flat and satchel bags are also available



The width of paper reel to fed on the machine can be calculated as under -



  • Flat Bags: Twice the bag width plus 2 cm for center seam
  • Satchel Bags: Twice the bag width plus 4 times depth of gusset plus 2 cm for center seam



Bag Formation:



  • Offered range of bags is enhanced by making the exact size plate for flat or satchel to the size plate holder
  • We can obtain plate holder and the length, by transforming the size gear wheel with tooth of 1 cm length
  • Tubing that are cut by beaters into precise dimensions are equivalent to gear size, later which is suitably dispatched via conveyor rollers
  • The delivery cylinder is also the bottom folding and pasting cylinder
  • In order to the delivery cylinder for the purpose of releasing and delivery in a vertical stack, the Bottom field after being made is pasted and later moved by the folding cylinder
  • Printing Attachment: Owing to the latest technology two or four color flexo printer can easily be coupled with the Paper bag making machine
  • Available in three sizes (deluxe model, medium and baby model)



Specification:



Model HMW 101

Size : 34 Large

12 x 18 CMS Min to 42 x 60 CMS Max. Flat

12 x 18 CMS Min to 36 x 50 CMS Max. Satch

70 to 125 bags per minute witch Depend on quality of material

Model HMW 102

Size : Medium

10 x 17 CMS Min to 28 x 36 CMS Max. Flat

10 x 17 CMS Min to 20 x 36 CMS Max. Satch

Floor Space Required 14ft. x 10ft. without printing
Model HMW 103

Size: Baby

7 x 15 CMS Min to 10 x 16 CMS Max. Flat

7 x 15 CMS Min to 10 x 16 CMS Max. Satch

18FT. X 10FT. WITH PRINTING
Drive : 3 HP AC & DC 1440 RPM Required
